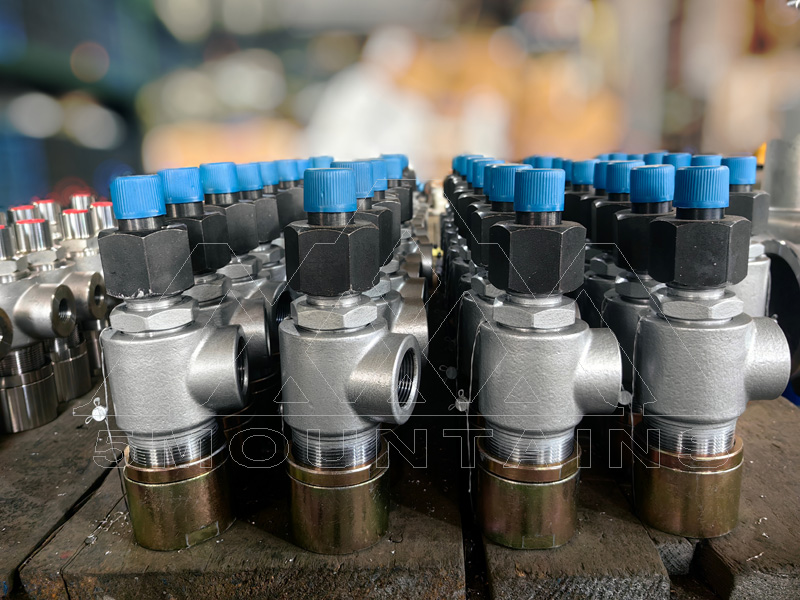

When it comes to protecting equipment from overpressure hazards, the A11H/Y/W Safety Valves tands out as a reliable and precision-engineered solution. This threaded safety valve is designed for a variety of industrial media, including air, nitrogen, and ammonia, operating efficiently at temperatures up to 200°C. In this comprehensive guide, we’ll explore the key features, applications, and why Shanghai WUYUE Pump Valve Group Co., Ltd.is a trusted manufacturer of this critical safety component.
The A11H/Y/W is a spring-loaded, micro-open closed safety valvewith internal threaded connections. It belongs to the A11 series, which is specifically engineered for systems requiring precise overpressure protection. The valve automatically releases excess pressure when it exceeds a preset limit, preventing damage to pipelines, compressors, and other equipment.
Body Materials: Cast iron, brass, stainless steel (depending on model suffix: H/Y/W)
Connection Type: Internal threaded (NPT, BSP, or custom)
Temperature Range: Up to 200°C
Pressure Ratings: Available in 160, 320, and 420 psi variants
Media Compatibility: Air, nitrogen, ammonia, and similar non-corrosive gases
The micro-open feature ensures a controlled lift of the valve disc, allowing precise pressure relief without sudden blowdown. This minimizes system shock and extends component life.
The A11Y series includes models like A11Y-160, A11Y-320, and A11Y-420, making it suitable for low to high-pressure systems. For example:
A11Y-160C: Carbon steel body for general industrial use.
A11Y-320P: Stainless steel construction for ammonia or corrosive media.
The closed bonnet prevents leakage of hazardous media into the environment, which is critical for ammonia or toxic gas applications.
Easy to install and maintain, the internal threads allow direct mounting onto existing pipe systems without welding.
Shanghai WUYUE can manufacture valves according to American (ANSI), Japanese (JIS), German (DIN), Russian (GOST), or British (BS)standards, ensuring global compatibility.
The A11 series is widely used in industries where overpressure protection is mandatory:
Multi-stage air compressors (especially high-pressure models) rely on A11Y-160/320 valves to prevent catastrophic failure.
Ammonia-specific models (e.g., A11Y-160 ammonia safety valve) are designed to handle anhydrous ammonia without corrosion.
The valve’s leak-tight design ensures safe pressure relief in nitrogen blanketing or purging systems.
Threaded safety valves protect actuators, accumulators, and control panels from pressure surges.
Stainless steel variants (A11W-16P) resist corrosive media like weak acids or alkalis.
As a leading manufacturer with over 20 years of experience, Shanghai WUYUE Pump Valve Group Co., Ltd.offers unmatched expertise in producing high-quality safety valves. Here’s what sets us apart:
We design valves to meet ISO, API, ASME, PED, and GBstandards. Our A11H/Y/W valves are tested for leakage, set pressure accuracy, and repeatability.
Need a non-standard thread size, special material (Hastelloy, Monel), or unique pressure setting? Our engineering team can tailor the valve to your exact requirements.
Each valve undergoes:
Hydrostatic and pneumatic testing
Set pressure verification (within ±3%)
Seat leakage testing (bubble-tight closure)
With a large inventory of raw materials and components, we offer short lead times and cost-effective solutions for bulk orders.
Our multilingual sales team (including foreign_trade@0086pv.com) responds within 24 hours to technical inquiries or quote requests.
When choosing a model, consider:
Media Type: Ammonia requires stainless steel internals; air can use carbon steel.
Set Pressure: Specify the exact pressure at which the valve should open (e.g., 10 bar, 150 psi).
Temperature: Ensure the valve’s elastomers/seals are rated for your operating temperature.
Connection Size: DN15 (1/2″) is standard, but other sizes are available.
Certification Needed: CE, ATEX, or CRN for specific regions.
Orientation: Install vertically with the valve stem upright.
Inlet Piping: Keep the inlet pipe as short as possible to avoid pressure drop.
Testing: Manually test the valve every 6 months using the lifting lever (if equipped).
Replacement: Replace the valve if it fails to reseal or shows signs of corrosion.
Ready to order the A11H/Y/W threaded safety valve? Visit our product page for detailed specifications and request a quote:
🔗 A11H/Y/W Spring Micro-Open Closed Safety Valve
For immediate assistance, email us at foreign_trade@0086pv.comor use the inquiry form on our website. We look forward to protecting your equipment with world-class safety valves!
