Time：2026/4/30 11:54:39 Category：TECHNICAL ARTICLE Source： Click：

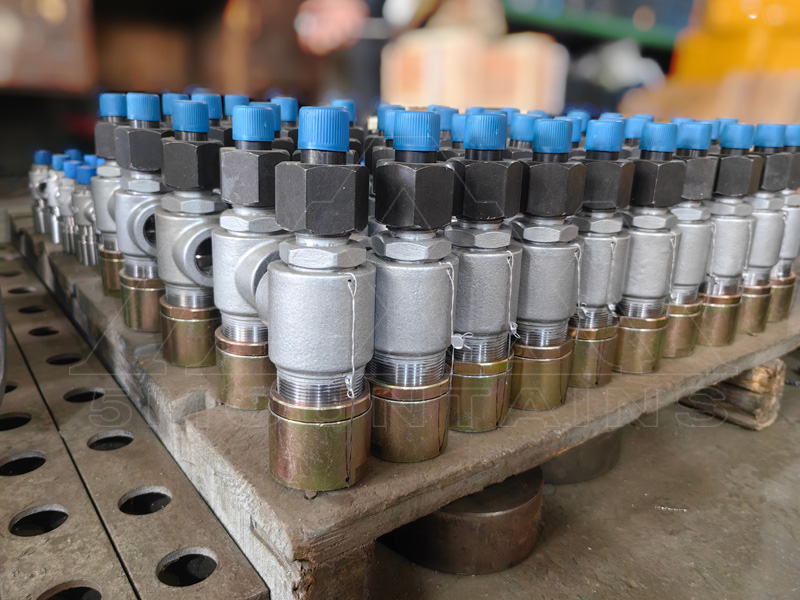

When securing pneumatic systems, compressors, or high-pressure gas pipelines, a reliable threaded safety valveis your last line of defense. Unlike flanged valves, threaded safety valves offer compact installation and precise pressure management for smaller bore systems. Among the most trusted in the industry is the A11H/Y/W Safety Valveseries from Shanghai WUYUE Pump Valve Group Co., Ltd.
This guide explains the functional differences between the A11H, A11Y, and A11W variants, their material codes, and why this series is specified for ammonia, air, and nitrogen applications up to 200°C.
The letters H, Y, and W in the valve model refer to different sealing surface materials. This is a critical factor because the seal determines both chemical compatibility and temperature resistance.
Based on the official specification from Shanghai WUYUE’s product line:
A11H– Features a stainless steel hard seal. Ideal for general air, oil, or steam where minor particulate matter is present, as the hard surface resists erosion.
A11Y– Equipped with a stellite alloy sealing surface. Stellite is extremely hard and corrosion-resistant, making the A11Y variant perfect for high-temperature steam, superheated water, or mildly corrosive gases.
A11W– Utilizes a stainless steel body with a softer seal (or full stainless construction). This variant is specifically suited for corrosive mediasuch as ammonia (NH3) and certain chemical vapors.
Quick Selection Guide:
For ammonia service → Choose A11W(Stainless steel, ammonia-compatible).
For high-pressure air/compressors → Choose A11Hor A11Y.
For high temperatures (above 200°C) → Seek stellite alloy (A11Y).
Designed as a spring-loaded, micro-open, closed safety valve, the A11 series offers distinct operational advantages:
Threaded End Connections– Internal thread inlets (DN15 and up) allow easy installation onto compressor tanks, small pressure vessels, or pipe tees without welding.
Micro-Open Lift Characteristic– The disc lifts slightly (micro-open) proportional to overpressure, allowing precise pressure relief without full blowdown, minimizing media loss.
Closed Bonnet Design– Unlike open spring valves, the closed bonnet prevents leakage to the atmosphere. This is mandatory for toxic or hazardous gases (e.g., ammonia).
High-Pressure Capability– The series includes models rated for 160 bar, 320 bar, and 420 bar(e.g., A11Y-160, A11Y-320, A11Y-420), making it suitable for multi-stage air compressors and hydraulic air service.
Wide Temperature Range– Operates reliably with media temperatures below 200°C (392°F).
Because of their material versatility and threaded connections, these valves are found across many industrial sectors:
Multi-Stage Air Compressors– The A11Y-160/320models are commonly used as inter-stage or discharge safety devices on high-pressure compressor systems.
Ammonia Refrigeration Plants– The A11W-16Pstainless steel variant is specified for anhydrous ammonia service, protecting evaporators and condensers.
Gas Pipelines (Air, Nitrogen, Natural Gas)– The A11Hprovides reliable overpressure protection for gas distribution skids.
Hydraulic Power Units– For oil systems requiring high-pressure relief, the hard seal variants prevent leak-by.
The Client: An industrial refrigeration facility in Southeast Asia
The Problem: Standard carbon steel safety valves on their ammonia (NH3) receiver were corroding after six months, causing false lifts and refrigerant loss. They required a corrosion-resistant, thread-connected valve that could close bubble-tight after each relief event.
The Solution: Shanghai WUYUE Pump Valve Group supplied the A11W-16P stainless steel threaded safety valve(A11W with 316 stainless steel trim and seal).
The Outcome:
Zero external leakage thanks to the closed bonnet design.
After 18 months, no corrosion was observed on the wetted parts.
The client reduced refrigerant refill costs by 70% compared to using non-code valves.
As a manufacturer with over 20 years of experience, Shanghai WUYUE provides more than just a valve. They offer:
Customization– While standards include GB (Chinese), they also design to ANSI, JIS, DIN, BS, and Russian standards.
Traceability– Each A11 series valve can be supplied with a material certificate and test report.
Global Compliance– Their products are used in export markets with full support for pressure directives.
Responsive Support– Technical inquiries are typically answered within 24 hours via their foreign trade email (foreign_trade@0086pv.com).
When ordering, include these three parameters to ensure a perfect match:
Model Code(e.g., A11Y-320C – means A11Y, 320 bar set pressure, C= carbon steel body)
Set Pressure (bar or psi)– The pressure at which the valve must start to open.
Connection Size– DN15 (1/2"), DN20 (3/4"), DN25 (1"), etc. (Internal thread per NPT, BSP, or GB standard).
*Example: “A11W-16P, DN15, set at 12 bar, BSP internal thread for ammonia gas service.”*
The A11H/Y/W Safety Valvefrom Shanghai WUYUE Pump Valve Group offers a versatile, high-performance solution for threaded overpressure protection. By understanding the H (hard), Y (stellite), and W (stainless) sealing material codes, engineers can confidently choose the correct valve for air, high-pressure compressors, or corrosive ammonia media.
For a direct quotation or technical datasheet, visit the official product page:
https://www.021pv.com/Product/Threaded_Safety_Valves/spring-micro-open-closed-safety-valve-5585.html
Or contact the factory’s international team at foreign_trade@0086pv.com.
