In modern industrial systems, pressure safety protection is essential to ensure safe operation of pipelines, storage tanks, compressors, and pressure vessels. One of the most reliable protection devices used in these systems is theA21 Type Safety Valve.

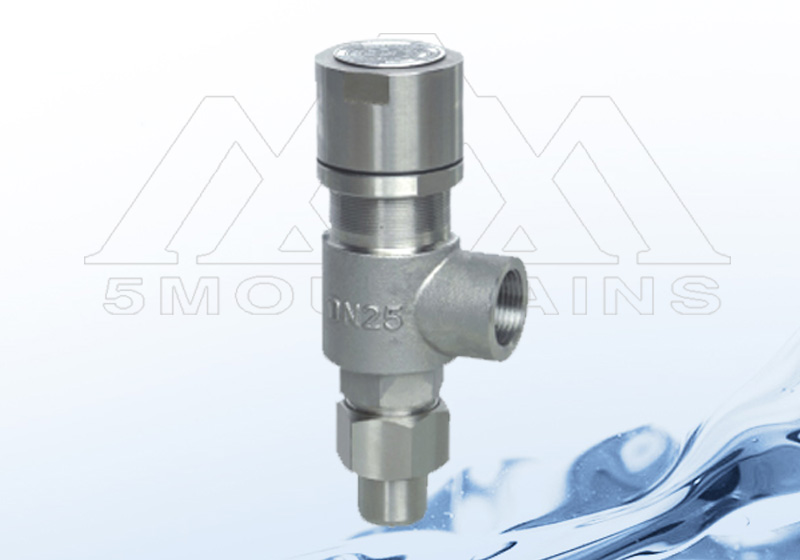

TheA21H/Y/W/F Safety Valveis aspring micro-open closed threaded safety valvedesigned to automatically release excess pressure in gas or liquid systems. It is widely used in pipelines carrying air, nitrogen, petroleum gas, liquefied petroleum gas (LPG), and other industrial media.
With anominal pressure range of PN16–PN320and material options includingWCB, 304, 316, and 316L, the A21 safety valve provides reliable overpressure protection for a wide range of industrial applications.
As a professionalA21H/Y/W/F Safety Valve Manufacturer and Supplier,Shanghai WUYUE Pump & Valve Groupprovides high-quality threaded safety valves designed to meet international industrial standards and demanding working conditions.
This guide explains what theA21 Type Safety Valveis, how it works, how to select the correct model, and how to properly use it in industrial systems.
TheA21 Type Safety Valveis aspring-loaded micro-open closed safety valvedesigned for pressure relief in pipelines and equipment. When the pressure in the system exceeds the preset safety value, the valve automatically opens slightly to release excess pressure and prevent equipment damage or explosion.
Once the pressure returns to the safe range, the spring mechanism pushes the valve disc back to the sealing position, closing the valve and restoring normal system operation.
Because of itsmicro-opening design, the A21 safety valve allows precise pressure regulation and quick response to pressure fluctuations. This makes it particularly suitable for systems where small pressure variations must be controlled safely.
The valve usually uses athreaded connection, which simplifies installation and maintenance compared with flanged safety valves.
Although all models belong to theA21 Type Safety Valve series, different variants are designed for specific working conditions and media.
TheA21H/Y spring micro-open external threaded safety valveis designed for systems carryingnon-corrosive gases.
Applicable media include:
Air
Nitrogen
Petroleum gas
The valve is suitable for equipment and pipelines withworking temperatures ≤200°C.
Typical applications include:
Gas storage systems
Air compressor pipelines
Industrial gas distribution equipment
TheA21W Safety Valveis designed forcorrosive gases or liquids. To withstand corrosive environments, the valve is usually manufactured usingstainless steel materials such as 304, 316, or 316L.
Common application industries include:
Chemical plants
Petrochemical processing systems
Industrial wastewater treatment facilities
Like other A21 valves, it operates attemperatures up to 200°C.
TheA21F Safety Valveis specially designed forliquefied petroleum gas (LPG)and similar volatile gases.
Typical installations include:
LPG storage tanks
Gas cylinders
Petroleum gas pipeline systems
In these systems, the valve acts as acritical overpressure protection device, ensuring safe operation of gas storage and transportation equipment.
Typical specifications of theA21H/Y/W/F Safety Valveinclude:
Nominal pressure range
PN16 – PN320
Working temperature
≤ 200°C
Connection type
External threaded connection
Available materials
WCB Carbon Steel
304 Stainless Steel
316 Stainless Steel
316L Stainless Steel
These material options allow the valve to operate safely in different industrial environments.
Choosing the correct safety valve is essential for ensuring equipment safety and compliance with pressure system regulations.
Different models are designed for different media.
A21H/Y– air, nitrogen, petroleum gas
A21W– corrosive gases or liquids
A21F– liquefied petroleum gas
Correct selection ensures long service life and reliable sealing performance.
The valve’s pressure rating must match the operating pressure of the system. ThePN16–PN320 pressure rangeallows the A21 safety valve to be used in both medium and high-pressure systems.
Material selection depends on the chemical properties of the medium.
WCB– suitable for general industrial environments
304 stainless steel– moderate corrosion resistance
316 / 316L stainless steel– strong corrosion resistance
Using the correct material helps prevent corrosion and improves reliability.
The A21 safety valve is designed foroperating temperatures up to 200°C. Systems operating at higher temperatures may require other types of safety valves.
Correct installation and maintenance are important for ensuring safe and stable operation.
The valve should be installedverticallyon the pipeline or equipment to ensure proper operation.
Important installation considerations include:
Ensure the pipeline is clean before installation
Install according to the flow direction
Avoid vibration and mechanical stress
The valve’s set pressure can be adjusted using thespring adjusting screw. This adjustment should be performed by trained technicians to ensure safety compliance.
Regular maintenance ensures long-term reliability.
Recommended maintenance tasks include:
Checking the spring condition
Inspecting sealing surfaces
Cleaning valve components
Verifying pressure calibration
Routine inspection prevents unexpected valve failure.
TheA21H/Y/W/F Safety Valveis widely used across many industries because of its reliability and compact design.
Common application sectors include:
Petrochemical industry
Gas transmission systems
Air compressor pipelines
LPG storage and distribution
Chemical processing plants
Industrial pressure vessels
These valves play an essential role in protecting equipment and ensuring safe industrial operations.
Shanghai WUYUE Pump & Valve Groupis a professionalA21H/Y/W/F Safety Valve Manufacturer and Supplier in China, specializing in the design and production of industrial valves.
With advanced production equipment, strict quality control systems, and extensive engineering experience, the company provides reliable valve solutions for global customers.
Key advantages include:
Professional valve R&D and engineering team
Advanced CNC machining equipment
Strict product quality inspection and testing
Wide range of valve materials and pressure ratings
Custom valve design for special industrial applications
The company’sA21 Type Safety Valve seriesis designed to deliver reliable pressure protection, excellent sealing performance, and long service life.
A21H/Y valves are used for non-corrosive gases such as air and nitrogen.
A21W valves are designed for corrosive gases or liquids.
A21F valves are used for liquefied petroleum gas systems.
The typical pressure rating for A21 safety valves isPN16 to PN320.
Common materials includeWCB carbon steel, 304 stainless steel, 316 stainless steel, and 316L stainless steel.
The A21 safety valve is generally designed for systems with temperaturesup to 200°C.
TheA21 Type Safety Valveis an essential pressure protection device used in gas pipelines, compressors, storage tanks, and industrial pressure systems. With itsspring micro-open design, threaded connection, and wide pressure range, it provides reliable and efficient overpressure protection.
Different models such asA21H, A21Y, A21W, and A21F Safety Valvesare designed for specific media including air, nitrogen, corrosive fluids, and liquefied petroleum gas.
As a trustedA21H/Y/W/F Safety Valve Manufacturer and Supplier,Shanghai WUYUE Pump & Valve Groupprovides high-quality safety valves that meet the needs of modern industrial systems worldwide.
