A27W-16T Safety Valve: The Complete Guide to All-Copper Threaded Safety Valves

Time：2026/4/8 19:20:56 Category：TECHNICAL ARTICLE Source： Click：

——Discover how Shanghai WUYUE Pump Valve Group Co., Ltd. delivers reliable, corrosion-resistant overpressure protection for water, air, and steam systems

When it comes to protecting small-to-medium pressure vessels, hot water heaters, air compressors, and steam equipment, the A27W-16T Safety Valve stands out as a premium choice. This all-copper, spring-loaded, micro-open (micro-lift), unclosed (open bonnet) threaded safety valve combines excellent corrosion resistance with reliable performance at temperatures up to 200°C.

In this comprehensive guide, we’ll explore the A27W-16T’s features, applications, technical specifications, and why Shanghai WUYUE Pump Valve Group Co., Ltd. is a trusted manufacturer of copper alloy safety valves for global customers.

What is the A27W-16T Safety Valve?

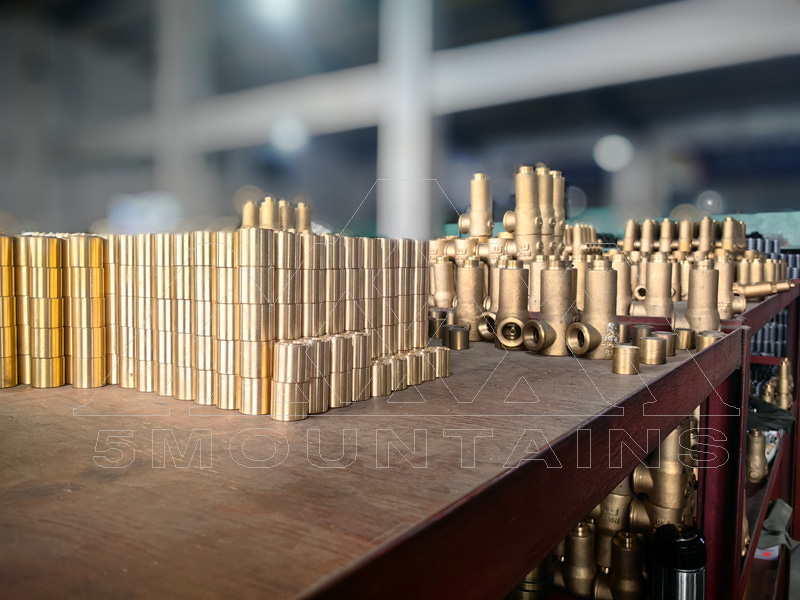

The A27W-16T spring micro-opening unclosed safety valve is a direct spring-loaded, threaded safety valve manufactured primarily from copper alloy (all-copper or internal copper construction). It belongs to the A27 series of micro-lift safety valves, which are characterized by their open bonnet design and proportional relief characteristics.

Key Features at a Glance:

The “T” in A27W-16T stands for copper (Tong in Chinese pinyin) , indicating the valve body and internal wetted parts are made from copper-based alloys, typically brass (CZ121/CW614N) or bronze.

Product Features and Functional Advantages

1. All-Copper Construction – Superior Corrosion Resistance

Unlike cast iron or carbon steel valves that rust over time, the A27W-16T’s copper alloy body provides:

• Excellent resistance to atmospheric corrosion – ideal for humid environments or outdoor installations.

• Compatibility with potable water systems – no rust contamination of drinking water.

• Long service life – copper naturally forms a protective patina, not destructive rust.

2. Micro-Open (Micro-Lift) Design

The A27W-16T features a proportional relief characteristic:

• The valve lift increases gradually as pressure rises above the set point.

• This provides smoother system response compared to full-lift valves.

• Ideal for liquid systems (water, glycol mixtures) where rapid pressure drop could cause water hammer.

3. Open Bonnet (Unclosed) Construction

The open bonnet design offers practical advantages:

• Visual inspection – operators can see the stem move when the valve lifts.

• Easy field cleaning – debris or scale can be removed without full disassembly.

• Lower cost – simpler construction than fully enclosed bellows valves.

• Suitable for non-hazardous media – where leakage to atmosphere is acceptable.

4. Threaded Connections for Easy Installation

Available with standard male or female threads:

• G (BSP) – parallel threads per British standard.

• R (BSPT) – tapered threads for pressure-tight joints.

• NPT – American National Standard tapered threads.

• Custom threads – upon request.

Common sizes range from DN15 (1/2″) to DN50 (2″).

5. Wide Set Pressure Range

The A27W-16T can be factory-set to any pressure within the nominal pressure rating:

Set pressure tolerance: ±3% as standard, ±1% available upon request.

6. Compliance with International Standards

While standard production follows GB/T 12243 (Chinese national standard for spring-loaded safety valves), Shanghai WUYUE can manufacture the A27W-16T to meet:

• American standards – ASME Section VIII, API 527

• Japanese standards – JIS B 8210

• German standards – DIN 3320

• Russian standards – GOST 12.2.085

• British standards – BS 1123

Applications of the A27W-16T Safety Valve

The A27W-16T’s copper construction and threaded connections make it a popular choice in:

🔹 Hot Water Heaters and Boilers

• Protects domestic hot water tanks and small commercial boilers from thermal expansion overpressure.

• Copper body eliminates rust contamination of potable water.

🔹 Air Compressors and Pneumatic Systems

• Installed on small reciprocating air compressor tanks (20-500 liters).

• Provides reliable overpressure protection for workshop air systems.

🔹 Steam Equipment

• Suitable for small steam generators, steam tables, and autoclaves up to 200°C.

• Open bonnet allows visual confirmation of steam release.

🔹 Hydronic Heating Systems

• Protects closed-loop hot water heating systems (radiators, fan coils, underfloor heating).

• Prevents pressure buildup from thermal expansion.

🔹 Solar Thermal Systems

• Copper construction is compatible with glycol-based heat transfer fluids.

• Threaded connections simplify installation on solar collectors and storage tanks.

🔹 Marine and Offshore

• Brass or bronze construction resists saltwater corrosion in engine room cooling systems and compressed air systems.

🔹 Food and Beverage Processing

• Copper alloy valves are acceptable for non-product contact utility systems (steam, hot water, compressed air) in food plants.

Technical Specifications

Material Breakdown – A27W-16T

Dimensions (Typical – DN20/G3/4″)

Contact us for detailed dimensional drawings for your specific size and thread type.

Selection Guide: How to Choose the Right A27W-16T Valve

To select the correct A27W-16T safety valve for your application, answer these five questions:

1. What is your system’s maximum allowable working pressure (MAWP)?

• The safety valve set pressure must be ≤ MAWP.

• For A27W-16T, maximum set pressure is 1.6 MPa (16 bar / 232 psi).

2. What is your normal operating temperature?

• A27W-16T is rated for ≤200°C.

• For temperatures above 200°C, consider a high-temperature valve with a radiator (contact us).

3. What is the medium?

• Water, air, steam, or non-corrosive gases → Standard A27W-16T (brass) works perfectly.

• Corrosive media → Consider A27W-P (304 stainless steel) or A27W-R (316 stainless steel).

4. What thread type and size do you need?

• Check your existing piping: Is it BSP (G or R), NPT, or something else?

• Measure the nominal diameter (DN) or inch size.

5. What set pressure do you require?

• Specify the exact pressure at which the valve must open.

• We can factory-set to any pressure within the 0.1-1.6 MPa range.

Quick Selection Table

Why Choose Shanghai WUYUE Pump Valve Group Co., Ltd.?

Shanghai WUYUE Pump Valve Group Co., Ltd. has been engineering and manufacturing safety valves since 2002. Here’s why global customers trust us for their A27W-16T and other safety valve needs:

✅ Specialized Copper Valve Expertise

We understand the nuances of copper alloy casting, machining, and assembly. Our copper safety valves feature:

• Precision-machined seats for bubble-tight shut-off.

• Corrosion-resistant spring coatings (fluoroplastic/PTFE) to prevent spring failure.

• 100% factory testing of set pressure and seat leakage.

✅ Full Customization Capabilities

No two applications are identical. We offer:

• Custom set pressures – any value between 0.1 and 1.6 MPa.

• Custom thread types – NPT, BSP, BSPT, metric, or specials.

• Custom materials – all-brass, all-bronze, or stainless steel internal trim.

• Custom dimensions – if you have a space constraint, we can adjust.

✅ Rigorous Quality Control

Each A27W-16T valve undergoes:

• Set pressure test – verified on computerized test bench (accuracy ±1%).

• Seat leakage test – zero visible leakage at 90% of set pressure (per API 527).

• Hydrostatic body test – 1.5x rated pressure for 3 minutes.

• Spring compression test – to verify consistent force.

✅ Global Compliance & Export Experience

We routinely ship to over 40 countries and can provide:

• Certificates of Origin (Form E, CO, etc.)

• Third-party inspection (SGS, BV, TÜV, DNV) upon request.

• Manufacturing to international standards (ANSI/ASME, JIS, DIN, GOST, BS).

✅ Competitive Pricing & Fast Delivery

• Direct factory pricing – no middlemen markups.

• Typical lead time – 15-25 days for standard A27W-16T valves.

• Sample orders – 1-5 units available for qualification testing.

✅ Responsive Customer Support

Email foreign_trade@0086pv.com and you will receive a reply within 24 hours – often with a quotation, technical drawing, and delivery timeline.

Installation and Maintenance Tips for A27W-16T Valves

Installation Best Practices:

1. Mount vertically – with the valve stem pointing straight up.

2. Keep inlet pipe short – within 10x pipe diameter of the protected vessel.

3. No isolation valves – never install a shut-off valve between the protected equipment and the safety valve.

4. Provide discharge piping – direct outlet to a safe location (floor drain, outside atmosphere).

5. Use thread sealant – apply PTFE tape or pipe dope to male threads only (not on valve threads).

Maintenance Schedule:

Signs Your Valve Needs Replacement:

• Continuous weeping or dripping from outlet.

• Valve fails to open during manual test.

• Visible corrosion or pitting on the body or spring.

• Set pressure has drifted more than ±5% from factory setting.

Ordering Information – How to Purchase A27W-16T Safety Valves

Step 1: Visit the Product Page

🔗 A27W-16T Spring Micro-Opening Unclosed Safety Valve

Step 2: Prepare Your Specification

Use this checklist when emailing us:

• Quantity required

• Set pressure (MPa / bar / psi)

• Inlet thread type and size (e.g., G1/2″, 1/2″ NPT)

• Outlet thread type and size (if different from inlet)

• Medium (water, air, steam, other)

• Operating temperature (°C)

• Any special certifications needed (CE, ASME, etc.)

Step 3: Email Your Inquiry

Send your specification to: foreign_trade@0086pv.com

Step 4: Receive Quote & Drawing

Within 24 hours, you will receive:

• Commercial quotation (EXW, FOB Shanghai, or CIF your port)

• Dimensional drawing

• Material certificate (if requested)

• Lead time and payment terms

Step 5: Sample Order (Recommended)

For first-time customers, we strongly recommend ordering 1-5 units as samples for field testing before bulk purchase.

Frequently Asked Questions (FAQs)

Q1: Is the A27W-16T suitable for drinking water systems?

A: Yes. The all-copper construction is safe for potable water and will not introduce rust or contaminants.

Q2: Can I adjust the set pressure myself?

A: No. Safety valves are factory-set and sealed. Field adjustment may damage the valve and void the warranty. Contact us if you need a different set pressure.

Q3: What is the difference between “all-copper” and “internal copper”?

A:

• All-copper: The entire body and wetted parts are copper alloy.

• Internal copper: The outer body is cast iron or steel, but all internal wetted parts (seat, disc, stem) are copper. This is a lower-cost option.

Q4: Can the A27W-16T handle oil in compressed air?

A: Yes. Trace amounts of oil from a lubricated air compressor will not harm the brass construction. For oil-free applications, the standard valve works fine.

Q5: Do you offer CE certified valves?

A: Yes. Upon request, we can provide A27W-16T valves with CE marking and PED (Pressure Equipment Directive) documentation.

Q6: What is your warranty?

A: We offer a 12-month warranty against manufacturing defects from the date of shipment.
