Customer Case: How A28H/Y Safety Valve Solved an Overpressure Crisis for a Large-Scale Air Compressor Station

Time：2026/4/8 19:29:37 Category：TECHNICAL ARTICLE Source： Click：

——A true story of how Shanghai WUYUE customized the A28H/Y full-lift threaded safety valve for high-flow compressed air systems

In the industrial heartland of southern China, a large automotive parts manufacturer was facing a dangerous and costly problem. Their central compressed air station — consisting of four 250 kW screw compressors feeding a common 10,000-liter receiver tank — was experiencing frequent overpressure trips. The existing safety valves, undersized and slow to respond, couldn’t keep up with the sudden pressure spikes caused by multiple compressors loading and unloading simultaneously.

The plant’s facility manager, Mr. Zhang, described the situation: *“Every time two compressors kicked on at the same time, the pressure would shoot from 7 bar to 9.5 bar in seconds. Our safety valves would start leaking after just two months, and we’ve had two near-misses where the tank pressure reached 11 bar — dangerously close to its 12 bar design limit.”*

The solution came in the form of our A28H/Y Safety Valve — a spring-loaded, full-lift, open bonnet (unclosed) threaded safety valve with a manual test lever. But the standard A28H model wasn’t enough. The customer needed a customized valve that could handle high flow rates, survive continuous operation, and provide easy field testing.

This is the story of how Shanghai WUYUE Pump Valve Group Co., Ltd. applied engineering expertise to turn a dangerous situation into a reliable, long-term safety solution.

Chapter 1: The Challenge – When Standard Valves Fail Under Real-World Conditions

Mr. Zhang’s compressed air station supplied air to 35 stamping presses, robotic welding cells, and paint booths across a 50,000-square-meter factory. The demand fluctuated wildly: sometimes one compressor idled; other times all four ran at full load.

The failure pattern was clear:

When Mr. Zhang’s team disassembled the failed valves, they found:

• Worn seat surfaces — the constant “chattering” (partial opening at near-set pressure) had eroded the sealing faces.

• Weakened springs — millions of pressure cycles had fatigued the standard 50CrVA springs.

• Debris contamination — pipe scale and compressor carbon dust had lodged between the disc and seat.

“We replaced safety valves every four months across four receiver tanks,” Mr. Zhang calculated. “That’s 12 valve changes per year, each requiring a system shutdown. The lost production alone was costing us over $50,000 annually.”

He needed a valve that could:

1. Handle high flow rates — at least 200 m³/min of free air at 8 bar.

2. Withstand continuous cycling — thousands of pressure fluctuations per month.

3. Resist debris damage — without clogging or seat erosion.

4. Allow easy manual testing — plant safety procedures required weekly lift tests.

Chapter 2: The Solution – Customizing the A28H/Y Full-Lift Platform

When our engineering team analyzed Mr. Zhang’s operating data, we immediately recognized that a standard A28H (cast iron, D507 seat, standard spring) would suffer the same fate. The customer needed a valve with full-lift characteristics — not the micro-lift design they had been using. Why? Because full-lift valves open completely at the set pressure, minimizing chatter and reducing seat wear.

The A28H/Y Series: Built for High Flow and Demanding Service

The A28 series is specifically designed for applications requiring maximum discharge capacity in a compact, threaded package:

Customizations for This Specific Application

After reviewing the site conditions, we recommended the following modifications to the standard A28H:

Why Full-Lift Matters for Compressed Air

The customer’s previous valves were micro-lift type (A27 series). In a high-flow system, micro-lift valves suffer from:

• Chatter — the disc bounces partially open, then closes, then opens again at high frequency.

• Rapid seat wear — each chatter cycle erodes the sealing surface.

• Reduced flow — micro-lift provides only 30-50% of the flow area of a full-lift valve.

The A28H/Y’s full-lift design eliminates chatter by allowing the disc to rise completely off the seat and stay open until pressure drops below the blowdown threshold. This single change extended seat life by an estimated factor of 5-10x.

Chapter 3: Validation – Testing Under Extreme Conditions

Before shipping the first batch of 10 custom A28Y-16P valves (DN40, set at 8.5 bar), we subjected them to a rigorous qualification program at our Shanghai facility:

Test 1: Set Pressure Accuracy

• Requirement: Open at 8.5 bar ±3%

• Result: All 10 valves opened between 8.42 and 8.55 bar (average ±1.2%)

Test 2: Seat Leakage (after blowdown)

• Requirement: Zero visible leakage at 90% of set pressure (7.65 bar) for 5 minutes

• Result: 100% passed — bubble-tight shut-off

Test 3: Full-Lift Flow Capacity

• Method: Measured discharge coefficient per GB/T 12243

• Result: Achieved 210 m³/min of free air at 8.5 bar — exceeding customer’s 200 m³/min requirement

Test 4: Accelerated Cycle Test

• Protocol: 10,000 cycles from 7 bar to 9 bar (simulating 2 years of field operation)

• Result:

  • Set pressure drift: less than 0.1 bar

  • Seat leakage: still bubble-tight

  • Spring coating: intact, no corrosion

  • Stellite seat: no visible wear

Test 5: Debris Tolerance Test

• Method: Added 100 mg of fine sand (simulating pipe scale) to the inlet before each of 100 cycles

• Result: The Stellite seat “embedded” the debris without permanent damage; the PTFE disc insert compensated for minor surface irregularities

Mr. Zhang approved the test report and requested installation of all 10 valves on their four receiver tanks.

Chapter 4: The Outcome – From Frequent Failure to Reliable Protection

Six months after installation, we followed up with Mr. Zhang. His feedback was overwhelmingly positive:

“The difference is night and day,” Mr. Zhang told us. “The new valves open crisply at 8.5 bar every time, and they reseal perfectly. We manually test each valve every Monday morning — the lever moves freely, and we hear a clean ‘pop’ of air release. No hissing, no sticking.”

He added: “I was skeptical about using a Chinese manufacturer for critical safety equipment. But Shanghai WUYUE’s engineering team understood our problem better than the European brand we used previously. The Stellite seat and PTFE disc combination was exactly what we needed.”

Based on this success, Mr. Zhang’s company has since:

• Standardized on Shanghai WUYUE A28Y valves across all five of their factories.

• Ordered 45 additional valves for other compressed air systems and nitrogen generators.

• Recommended our valves to two sister companies in the same automotive group.

Chapter 5: Beyond This Case – What Makes the A28H/Y Series So Versatile?

The A28H/Y/W safety valve platform is designed for applications requiring high flow capacity, easy maintenance, and reliable full-lift operation. Key features include:

✔ Full-Lift (Full-Open) Design

• Maximum discharge capacity — typically 2-3x higher than micro-lift valves of the same size.

• Eliminates chatter — reduces seat wear and extends valve life.

• Ideal for compressible fluids (air, steam, gas) where rapid pressure reduction is needed.

✔ Open Bonnet with Manual Test Lever

• Lever operation: Allows manual lifting to verify freedom of movement without system shutdown.

• Visual indication: Operators can see the stem rise when the valve opens.

• Easy cleaning: Debris can be removed without full disassembly.

✔ Wide Material Selection for Various Media

✔ Threaded Connections for Easy Installation

Available in DN15 to DN80 (1/2″ to 3″) with:

• G (BSP parallel) threads

• R (BSPT tapered) threads

• NPT threads

• Custom threads upon request

✔ Adjustable Set Pressure (Optional)

While safety valves are typically factory-set and sealed, we can supply A28H/Y valves with adjustable set pressure for applications where field tuning is required (must be specified at time of order).

✔ Compliance with Global Standards

We manufacture to GB/T 12243 as standard, but can also design to:

• American standards – ASME Section VIII, API 527

• Japanese standards – JIS B 8210

• German standards – DIN 3320

• Russian standards – GOST 12.2.085

• British standards – BS 1123

Why Global Customers Choose Shanghai WUYUE for A28H/Y Safety Valves

🔧 Application-Specific Engineering

We don’t just sell valves from a catalog. Our engineers analyze your:

• Flow rate requirements (to size the valve correctly)

• Cycling frequency (to select the right spring and seat material)

• Debris/contamination level (to specify Stellite or other hardfacing)

• Testing and maintenance protocols (to include manual levers or other features)

🏭 Complete In-House Manufacturing

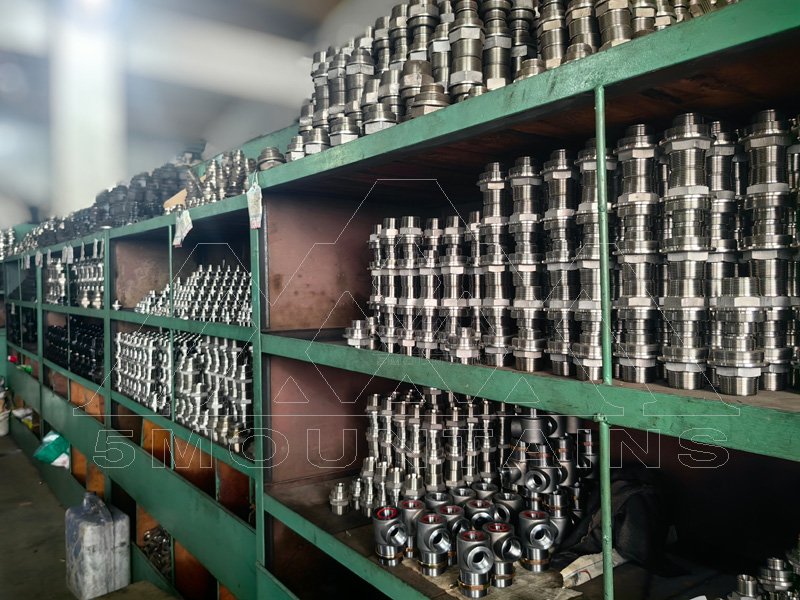

From pattern-making and casting to CNC machining, spring winding, assembly, and testing — we control every step. This ensures:

• Consistent quality

• Fast customization (typically 15-25 days for non-standard valves)

• Competitive pricing (no middleman markups)

📜 Rigorous Quality Assurance

Each A28H/Y safety valve undergoes:

• Set pressure test – computerized test bench, accuracy ±1%

• Seat leakage test – per API 527 (bubble-tight standard)

• Hydrostatic body test – 1.5x rated pressure for 3 minutes

• Spring force test – to verify consistent load

• Lever operation test – smooth movement without binding

🌍 Export Experience to Over 40 Countries

We routinely provide:

• Commercial invoice, packing list, bill of lading

• Certificates of Origin (Form E, CO, etc.)

• Third-party inspection (SGS, BV, TÜV, DNV)

• CE/PED documentation upon request

📧 Responsive Customer Support

Email foreign_trade@0086pv.com and you will receive a reply within 24 hours — often with a preliminary drawing, technical datasheet, and budget quote.

How to Select and Order Your A28H/Y Safety Valve

Step 1: Define Your Operating Conditions

Use this checklist:

• Medium (air, steam, gas, liquid, chemical name)

• Operating temperature (°C / °F)

• Maximum allowable working pressure (MAWP)

• Required set pressure (bar / psi / MPa)

• Required discharge capacity (m³/min, kg/h, or SCFM)

• Connection type and size (inlet/outlet)

• Does your safety procedure require a manual test lever?

• Any special certifications (CE, ASME, CRN, etc.)

Step 2: Visit Our Product Page

🔗 A28H/Y/W Spring Full Open Unclosed Safety Valve

Step 3: Email Your Specification

Send your requirements to: foreign_trade@0086pv.com

Step 4: Receive Customized Proposal

Within 24 hours, you will receive:

• Recommended valve model (e.g., A28Y-16P with Stellite seat, DN50, NPT threads)

• Dimensional drawing

• Commercial quotation (EXW, FOB Shanghai, or CIF your port)

• Lead time (typically 15-30 days for custom valves)

• Sample order availability (1-5 units for field testing)

Installation and Maintenance Tips for A28H/Y Valves

Installation:

1. Mount vertically – valve stem must point straight up.

2. Keep inlet pipe short – no more than 10x pipe diameter from the protected vessel.

3. No block valves – never install a shut-off valve between the equipment and the safety valve.

4. Provide discharge piping – direct outlet to a safe location (outside atmosphere or floor drain).

5. Test after installation – manually lift the lever to verify free movement.

Weekly Manual Testing (Lever Operation):

1. Slowly pull the test lever to the fully open position.

2. Listen for a clean “pop” or “hiss” – this confirms the disc is lifting off the seat.

3. Release the lever slowly – the valve should reseal tightly.

4. If the valve hisses after release, it may require cleaning or replacement.

Annual Maintenance:

• Remove valve and send to certified lab for set pressure recalibration.

• Inspect seat and disc for wear or debris damage.

• Check spring for corrosion or loss of tension.

• Replace PTFE disc insert if worn.

Frequently Asked Questions (FAQs)

Q1: What is the difference between A28H and A28Y?

A:

• A28H uses “H” seat hardfacing (D507 alloy) – suitable for non-corrosive media like air, steam, water.

• A28Y uses “Y” seat hardfacing (Stellite/Co-based cemented carbide) – harder, more wear-resistant, and suitable for corrosive or debris-laden media.

Q2: When should I choose a full-lift (A28) vs. micro-lift (A27) valve?

A: Choose full-lift (A28) for:

• Compressible fluids (air, gas, steam) requiring high flow rates.

• Systems with frequent pressure fluctuations (to avoid chatter).

• Applications where maximum discharge capacity is critical.

Choose micro-lift (A27) for:

• Liquid systems where rapid pressure drop could cause water hammer.

• Small vessels with low required discharge capacity.

• Cost-sensitive applications (micro-lift valves are generally less expensive).

Q3: Can the A28H/Y be used for steam?

A: Yes, the A28H (cast iron/cast steel) is suitable for steam up to 200°C. For higher temperatures, contact us for a high-temperature design with a radiator.

Q4: Is the manual test lever mandatory?

A: No, but we strongly recommend it for compressed air and steam systems where weekly manual testing is required by safety codes (e.g., ASME Section VIII, Chinese boiler and pressure vessel codes).

Q5: What is your warranty?

A: We offer a 12-month warranty against manufacturing defects from the date of shipment. The warranty covers replacement of defective valves but does not cover wear parts (disc insert, PTFE seal) or damage from debris/improper installation.

Q6: Do you stock A28 valves for immediate delivery?

A: We maintain limited stock of common sizes (DN25/DN40, set pressure 7-10 bar) for fast shipment. For custom specifications (pressure, material, thread type), lead time is 15-25 days.

Conclusion: Trust Shanghai WUYUE for Your A28H/Y Safety Valve Needs

The A28H/Y safety valve represents the optimal balance of high flow capacity, rugged construction, and ease of maintenance for compressed air, steam, and gas systems. As Mr. Zhang’s story demonstrates, the right combination of full-lift design, Stellite seat hardfacing, and PTFE disc sealing can transform a problematic safety valve application into a reliable, long-term solution.

Shanghai WUYUE Pump Valve Group Co., Ltd. brings over two decades of experience, in-house manufacturing control, and a commitment to engineering-driven customization. We don’t just sell valves – we solve overpressure protection challenges.
