Time：2026/1/20 12:50:32 Category：ENTERPRISE NEWS Source： Click：
Safety valves are vital components in industrial systems that involve pressurized fluids and gases. Among the wide range of safety-relief products, the A27W-16T spring micro-opening unclosed safety valve stands out for its simplicity, reliability, and broad applicability — especially for systems operating with air, water, steam, and other common media under moderate pressure. This article explores the manufacturing craftsmanship, engineering features, industrial use cases, and growing market demandbehind A27W-16T safety valves from Chinese manufacturers.

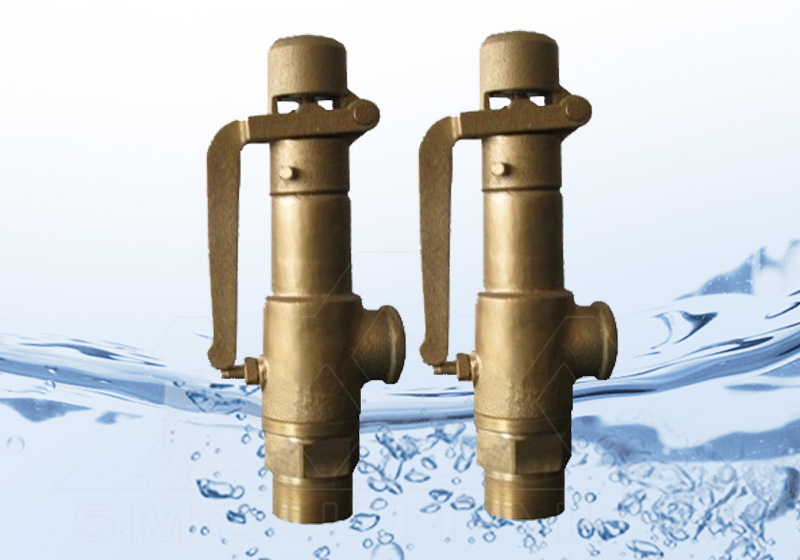

The A27W-16T safety valveis a spring-loaded pressure relief devicedesigned to automatically open when internal system pressure exceeds a pre-set safe point. It then allows excess fluid or gas to escape, protecting vessels, pipework, or equipment from overpressure damage and preventing potential hazards such as explosions or system failures.
In technical terms, the A27W-16T is characterized as a spring micro-opening unclosed safety valve— sometimes described in English as a spring micro-lift safety relief valve— meaning it begins to lift just above the set pressure, progressively opening to release excess pressure.
Unlike full-lift safety valves that suddenly open to a pre-defined large opening, micro-opening valves like A27W-16T provide a gradual pressure release, which can be beneficial where controlled discharge is preferred or where space and installation are limited.
Safety valves such as the A27W-16T are engineered around core mechanical principles that ensure responsive operation, dependable sealing, and longevity in operation.
The heart of the A27W-16T design is a precision-calibrated spring system. A compression spring holds the valve’s sealing element (disc or poppet) firmly against the valve seat under normal pressure. When system pressure rises above the set pressure, the force from the pressurized fluid overcomes the spring force, causing the valve to lift and release excess pressure. This action continues until the pressure drops back to safe levels, at which point the spring reseats the valve.
The micro-opening nature means the valve’s opening height is small relative to the valve throat diameter, allowing for proportional lift responsive to slight pressure increases — ideal for applications where smooth pressure moderation is preferred.
Chinese manufacturers typically build A27W-16T valves using durable brass or bronze bodies and internal components. These materials offer corrosion resistance, machinability, and good sealing performance in typical media such as water, air, and steam.
Some manufacturers also offer variants with internal components in corrosion-resistant alloysto extend service life, particularly where media might be chemically aggressive.
Key components include:
Valve Body:Precision-machined brass/bronze for structural integrity.
Spring:High-quality alloy spring calibrated for accuracy and fatigue resistance.
Disc and Seat:Designed for tight shut-off and optimal reseating after discharge.
Threaded Connections:Standardized threads for easy integration with global piping systems.
Leading Chinese manufacturers employ controlled workflows that combine:
CNC machiningfor precision component production.
Spring calibration rigsto set accurate opening pressures.
Leakage and pressure testingto ensure reseating integrity.
Material testing and traceabilityfor compliance with industry norms.
This combination ensures that safety valves can withstand industrial environments while maintaining performance over time.
Although A27W-16T valves are simple in construction compared with larger industrial safety valves, their design offers several advantages:
The A27W-16T valve typically supports operating temperatures up to 200 °C (392 °F), making it suitable for applications such as steam systems, hot water circuits, and compressed air lines.
In typical configurations, the “16T” designation implies suitability for service up to approximately 1.6 MPa (≈16 bar), but actual set pressures can be tailored within this range according to application needs when ordered.
The valve’s compact design with threaded connections(such as BSP or NPT) allows for easy installation on pipelines, tanks, boilers, or air receivers without the need for complex flanged connections.
The A27W-16T’s design typically handles water, air, steam, and other common gases — making it versatile for many sectors. However, because it is often brass/bronze, specific corrosive media might require alternate metallurgy or coatings.
China has become a major hub for safety valve production, and several key factors contribute to its competitive positioning:
Chinese plants combine relatively low material and labor costs with rapidly improving automation and quality control systems, enabling them to deliver cost-competitive components without sacrificing performance. Many factories also comply with ISO-based quality management systemsand can offer third-party testing reportsupon request.
Manufacturers often offer custom pressure settings, thread standards, and special material optionsto match customer specifications — whether for domestic use or export projects.
Safety valve production in China is supported by a mature supply chain of metal suppliers, machining services, and logistics networks, enabling fast turnaround and scalability for large orders.
The practicality of the A27W-16T design makes it versatile across industries:
In steam boilers, safety valves protect against excessive pressure due to heat input spikes or steam blockages. A27W-16T valves, with their sensitive opening mechanism, are particularly useful for smaller boilers or auxiliary steam systems.
Air compressors generate pressurized air for tools, instrumentation, and process systems. A27W-16T valves are commonly specified on air receiversand compressor discharge lines to prevent overpressure conditions.
In hot water distribution loops or water heaters, pressure can rise due to thermal expansion or blockages. Safety valves like A27W-16T provide essential protection to piping and equipment.
For many plant operations involving tanks or vessels under moderate pressure, the A27W-16T offers a simple, effective means to safeguard equipment integrity and comply with safety regulations.
As industrial safety standards tighten worldwide — including pressures to conform to ISO 4126 and similar norms — the demand for certified safety valves grows. While A27W-16T valves are often suited for lower-pressure applications, they still play critical roles where compliance with safety codes is necessary.
Economic growth in emerging markets, industrial automation, and expansion of energy infrastructure drive demand for robust safety solutions. Components like the A27W-16T are broadly needed in both new installations and retrofits, offering manufacturers steady order volumes.
Modern plant design increasingly favors compact, modular equipment, which benefits from smaller safety valve types such as A27W-16T due to their size, ease of piping, and simple set-point adjustment.
When selecting a Chinese supplier for A27W-16T safety valves, consider factors such as:
Quality certification and material traceability
Pressure and temperature specification flexibility
Testing documentation and compliance with international standards
After-sales support and spare parts availability
Reputable manufacturers will often provide factory inspection reports, performance testing, and tailored production plansto align with project requirements.
The A27W-16T spring micro-opening unclosed safety valve is a reliable, versatile, and cost-effective solution for pressure protection in many moderate-pressure industrial applications. With simple yet effective spring-loaded design, easy installation, and broad media compatibility, it offers safety assurance for steam systems, air compressors, water heaters, and more. China’s valve manufacturing sector has matured to support high quality at competitive pricing, along with customization and scalability to meet global demand.
In a world where safety and operational reliability are increasingly non-negotiable, the A27W-16T stands as a key mechanical safeguard — ensuring peace of mind and continuous system operation across industries
