A28X-16T Safety Valve Manufacturer in China — Advanced Overpressure Protection for Air Compressors
Safety valves are essential components in modern mechanical and industrial systems. Among the diverse range of pressure relief devices, the A28X-16T safety valve has carved out a niche as a specialized solution designed primarily for air compressor systems, helping ensure safe operation under varying pressure conditions. In this deep-dive blog, we examine the vital role of the A28X-16T model, explore its manufacturing craftsmanship, technical features, industrial applications, and look at global market demand and trends for safety valves originating from China.

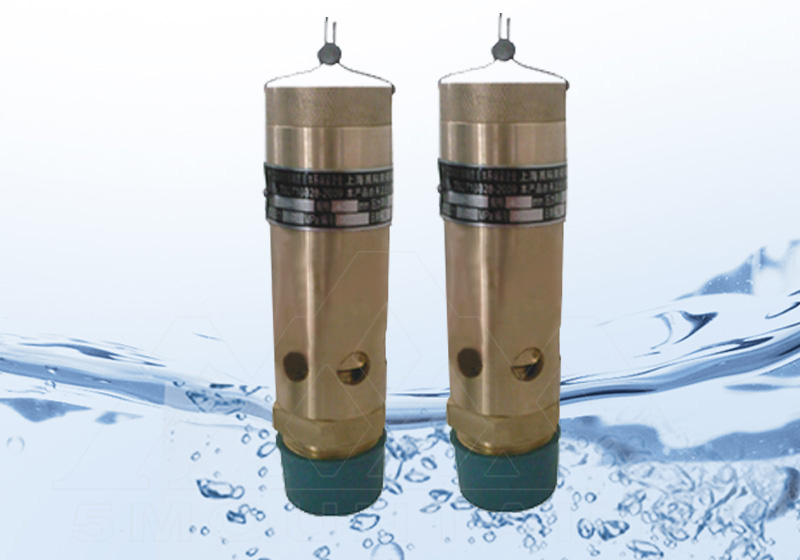

The A28X-16T safety valveis a spring-loaded, direct-acting safety relief valve widely used as an overpressure protection device in air compressors, pneumatic systems, and associated pressure vessels. Its design and performance make it suitable for medium-pressure environments typically found in compressed gas systems.
Unlike some general safety valve designs, the A28X-16T model is characterized as a full-lift, spring-operated safety valvewith a threaded connection and compact brass or copper body — making it well-suited to integration with industrial air receivers and compressor assemblies.
Key attributes include:
🔹 Nominal pressure rating:1.6 MPa (~16 bar)
🔹 Material:Often brass or stainless steel depending on application and manufacturer
🔹 Connection:Threaded interface for flexible installation
🔹 Structure:Spring-loaded full lift, automatically opening at set pressure and reseating when safe
This model’s simplicity and robust performance make it a staple in compressed air safety applications across industrial markets.
Manufacturing a high-quality safety valve like the A28X-16T requires precision engineering, stringent quality processes, and materials that withstand dynamic pressure environments.
The valve body is typically machined from brass or copper materials, chosen for their corrosion resistance, machinability, and thermal stability — particularly where the medium is compressed air. Brass also enables reliable sealing and contact surfaces that withstand repeated pressurization cycles without significant wear.
Some manufacturers may also offer alternate materials or coating sfor applications demanding higher chemical resistance or enhanced thermal performance, though brass remains the most common base.
At the heart of the A28X-16T safety valve is a precision-calibrated spring that holds the valve’s internal sealing element (often a disc or poppet) in place against a valve seat. When internal pressure exceeds the valve’s set point, the spring compresses, releasing excess air to prevent overpressure conditions. Upon pressure reduction, the spring forces the seal back onto its seat to stop flow.
Key manufacturing considerations include:
Accurate spring calibration:Ensures reliable set-pressure performance over many cycles.
Seal material selection:Elastomer seals like high-performance fluoro-elastomers are often used to improve sealing reliability under thermal and pressure cycling.
Chinese safety valve manufacturers typically employ:
CNC machining for precise and repeatable valve body and component fabrication.
Pressure testing rigs to verify opening pressure and reseating integrity.
Leakage and seat tests to ensure the valve performs reliably under operational conditions.
These process steps are part of quality control systems manufacturers use to meet both domestic standards and international expectations for safety devices in industrial applications.
Understanding the specific features of the A28X-16T helps clarify why this safety valve is widely adopted in air compressor systems.
Unlike micro-lift valves that only open slightly beyond their set pressure, the A28X-16T model is often a full-lift type— meaning it can open fully once pressure passes the threshold. This allows for rapid pressure relief under overpressure events, which is important in applications where excessive pressure buildup can lead to equipment damage or unsafe conditions.
The threaded connectionprovides flexibility and ease of installation in compressed air systems. This is particularly beneficial for manufacturers and maintenance personnel because threaded valves can be quickly fitted or replaced without the need for flanged connections or complex fittings.
Typical operational parameters include:
Nominal pressure:Up to 16 bar (1.6 MPa)
Working medium:Primarily compressed air, but also used with other compatible gases in some versions
Temperature range:Up to ~200 °C in some designs (though brass versions often operate below this range)
This performance envelope makes the valve suitable for a range of industrial compressors, from general purpose to larger screw compressors in manufacturing settings.
The A28X-16T model’s design makes it valuable in numerous industrial applications, particularly where compressed air safety is critical.
The primary application for A28X-16T safety valves is in air compressor systems— including both piston and screw types. Installed on air receiver tanks, discharge lines, and compressor housings, the valve protects these components from pressure exceeding safe limits.
In typical air compressor operation, internal pressure increases as air is compressed. If the pressure continues beyond the set limit due to control failure or system blockages, the A28X-16T valve opens automatically, venting excess pressure and preventing potential tank rupture.
In manufacturing plants, pneumatic tools and network lines often operate at pressures close to safety limits. Installing a reliable safety valve like the A28X-16T protects workshops and personnel by ensuring instantaneous pressure relief in abnormal conditions.
Beyond compressors, the valve can serve as a safety device for compressed air receivers, secondary storage vessels, and intermediate pressure chambers, providing a safeguard against pressure surges.
OEMs (Original Equipment Manufacturers) that build specialized machinery sometimes specify the A28X-16T safety valve as a standard component because of its reliability, availability, and compatibility with a wide array of threaded interfaces.
China has become a global hub for safety valve production and export. Several factors contribute to this leadership:
Chinese factories combine lower raw material and labor costs with advanced machining and quality systems, enabling production of high-quality safety valves at competitive pricing compared to many Western manufacturers.
An integrated industrial supply chain — from brass and steel suppliers to precision machining firms — allows Chinese valve manufacturers to scale production efficiently and adapt to specific design requirements.
Many Chinese safety valve producers offer customization services, such as bespoke calibration, alternative materials, and compliance with specific thread or pressure standards. This makes them appealing partners for global OEMs and distributors.
Experienced manufacturers provide documentation, testing reports, and sometimes third-party compliance verification to facilitate export and integration into international equipment and systems.
The global demand for safety valves — including models like the A28X-16T — is driven by several key industrial trends:
Industrial safety standards worldwide increasingly mandate robust overpressure protection devices on pressure-generating equipment. This regulatory environment fuels demand for well-manufactured safety valves with reliable performance.
Compressed air is a cornerstone utility in manufacturing, automotive workshops, energy sectors, and construction. As demand for compressed air systems grows, so too does the need for dependable safety components like the A28X-16T valve.
Emerging economies in Asia, Africa, and Latin America continue to expand industrial infrastructure. These markets often rely on affordable and reliable Chinese safety valve products to support new factories and equipment installations.
Older compressor systems still in operation require periodic replacement of safety valves due to wear, regulation changes, or performance upgrades, creating ongoing market demand even beyond new system installations.
Key factors to evaluate when choosing a manufacturer for A28X-16T safety valves include:
Material traceability and quality documentation
Pressure setting and testing certificates
Customization capabilities (pressure range, connection type)
After-sales support and spare-parts availability
Export compliance and logistics efficiency
Partnering with experienced factories can reduce installation issues and enhance long-term operational safety.
The A28X-16T safety valve is a critical safety device specifically engineered for air compressors and related pneumatic systems. With its full-lift design, reliable brass construction, and direct acting spring mechanism, it offers dependable overpressure protection across multiple industrial applications.
Chinese manufacturers have emerged as key suppliers of this valve model, leveraging cost-effective production, strong supply chains, and customization services to meet global demand. Whether for OEM supply, aftermarket replacement, or integration into complex systems, the A28X-16T remains a reliable choice where safety and performance are paramount.
