A28H / A28Y Safety Valve — Reliable Overpressure Protection for Modern Industrial Systems

Time：2025/12/6 12:59:18 Category：ENTERPRISE NEWS Source： Click：

(Manufactured by SHANGHAI WUYUE PUMP VALVE GROUP CO., LTD — www.021pv.com)

In recent months, A28H-series spring full-lift safety valves have become one of the most frequently requested valve products at SHANGHAI WUYUE PUMP VALVE GROUP CO., LTD. Customers from various industries—steam systems, compressed-air stations, chemical processing lines and general utility pipelines—have been actively inquiring about this robust and highly adaptable model. To help more clients understand this product clearly, we present this detailed overview of the A28H and A28Y threaded safety valve series.

1. Product Overview: Designed for Stable Performance and Easy Integration

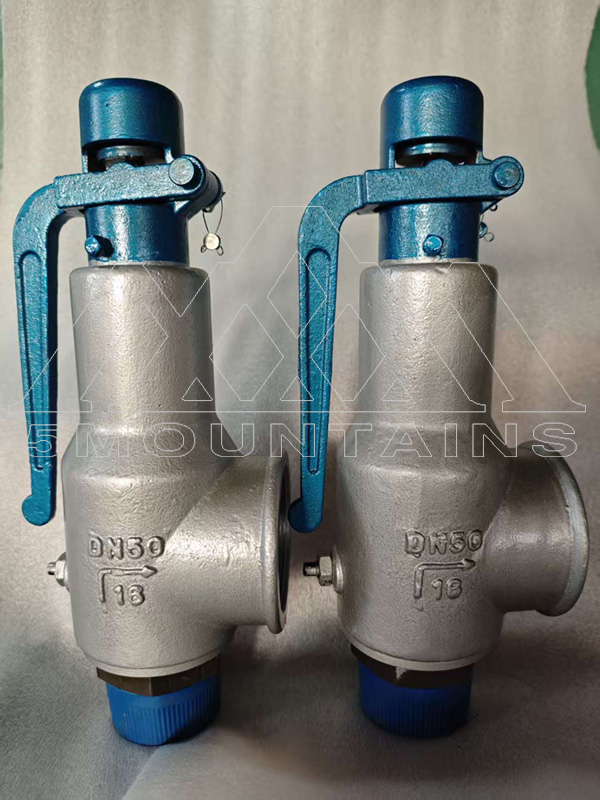

The A28H safety valve is a widely used threaded-connection spring full-lift model designed to provide rapid pressure relief and stable protection in overpressure conditions. With a nominal pressure range from 1.0 MPa to 6.4 MPa and sizes from DN15 to DN80, it can be easily installed on small, medium or large pipeline systems.

Depending on the working medium, two sealing structures are available:

A28H: Standard sealing for neutral media

A28Y: Stainless-steel or special alloy sealing for corrosive media

This flexibility allows engineers to match the exact valve type to the actual process requirements, ensuring a safe, durable and efficient operating environment.

2. Application Conditions and Material Options

The A28H model is suitable for equipment and pipelines with a working temperature ≤ 200°C, including:

Air

Steam

Water

Nitrogen

Hydrogen mixtures

For systems involving corrosive media, A28Y-P or A28Y-10R8 / 16R8 / 25R8 / 40R8 models are recommended. These versions use corrosion-resistant materials to ensure long-term stability even under demanding chemical conditions.

All series are designed as overpressure protection devices, protecting pipelines, vessels, generators and utility systems from the risks of sudden pressure increase. Every valve undergoes strict factory testing—spring force, lift height, body leakage and set pressure accuracy—guaranteeing that each product meets GB / API / international quality standards.

3. Why Choose WUYUE A28H / A28Y Safety Valves?

✔ Professional Manufacturer, Full Product Range

SHANGHAI WUYUE PUMP VALVE GROUP CO., LTD specializes in producing industrial valves for steam, air, water, chemical media and power applications. Our A28 series covers all pressure grades from 1.0 MPa to 6.4 MPa, as well as all threaded sizes DN15–DN80, ensuring rapid delivery and stable supply.

✔ Customizable Options

We support customized materials, set pressure calibration, export packaging, and OEM labeling for overseas partners.

✔ High Reliability and Fast Response

The full-lift design ensures rapid discharge once the set pressure is reached, offering superior safety performance for boilers, pressure tanks and distribution pipelines.

✔ Global Service and Technical Support

Our engineering team assists customers with selection, drawing confirmation, pressure setting, testing documentation and logistics arrangements.

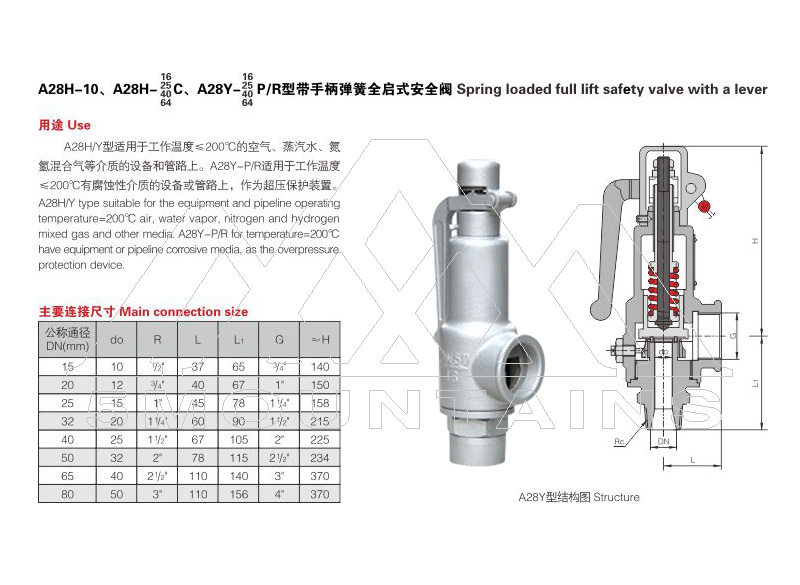

4. Typical Model List

A28H-10 / A28H-16

A28Y-10P / 10R8

A28Y-16P / 16R8

A28Y-25R8 / 40R8

These models cover different medium types and pressure grades to meet various industrial conditions.

5. Contact Us for Global Cooperation

With rising global demand for compact threaded safety valves, the A28H / A28Y series continues to be a preferred choice for many customers. If your project requires reliable overpressure protection equipment, we welcome you to contact us directly.

Manufacturer:

SHANGHAI WUYUE PUMP VALVE GROUP CO., LTD

Website: www.021pv.com

Whether you need technical guidance, quotations, drawings or export solutions, our team is ready to support you.
